Compression-Rebound Performance

When evaluating the compression-rebound property of a gasket, we should not only focus on numerical values; the morphology of the compression-rebound curve is also crucial. In this article, we will first discuss two core dimensions of curve analysis: numerical value magnitude and curve slope.

Morphology of Compression-Rebound Curve ✦

1.Numerical Value Magnitude

First is the numerical value magnitude. Many people only look at the compression rate or rebound rate individually, but in fact, these two are mutually constrained. What truly needs to be evaluated is the rebound amount, which is calculated as the product of the initial thickness, compression rate, and rebound rate. This is the key indicator reflecting the actual compensation capacity of the gasket.

2.Curve Slope

Second is the curve slope, with emphasis on the recovery curve of the unloading segment. A larger slope indicates greater elastic compensation capacity of the gasket, smaller stress loss of the gasket, better adaptability to the cyclic action of loads, and thus better sealing stability.

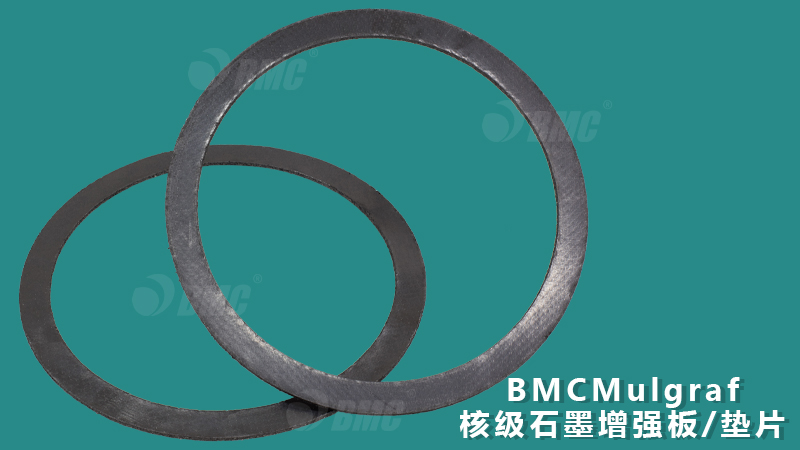

BMCMulgraf：Good medium resistance and wide application range

For example, flexible graphite gaskets and metal wound gaskets have different slopes of their unloading curves, leading to differences in their ability to adapt to working conditions.

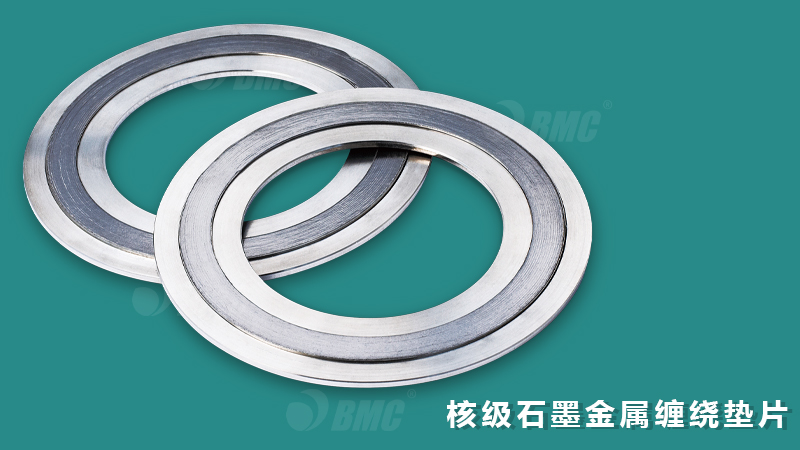

BMCSWG: Excellent resilience and sealing performance

These two dimensions help us make a preliminary assessment of gasket performance. In the next article, we will continue to explain the third dimension of curve analysis — curve area — as well as how to comprehensively evaluate the compression-rebound property of gaskets.
